TI4100 GPU-24

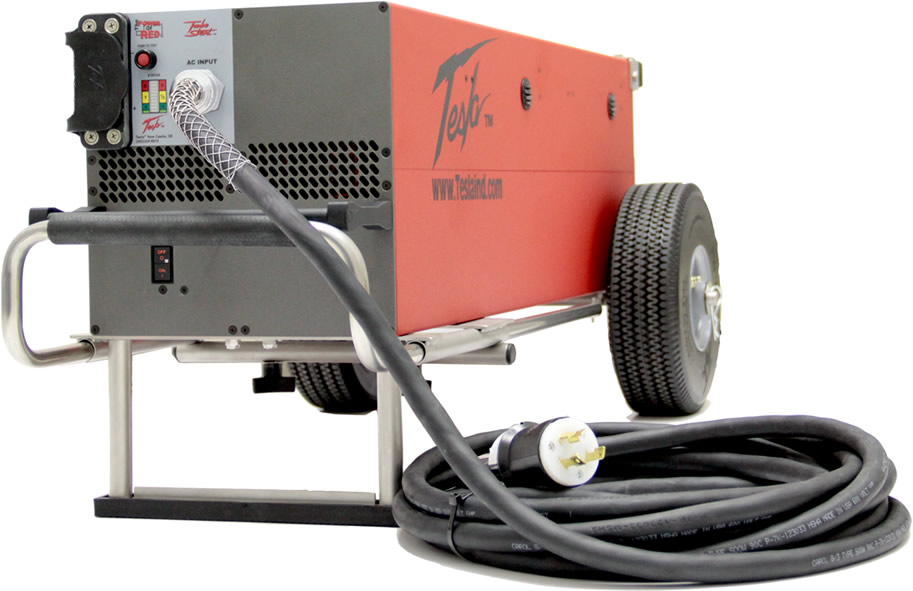

TI4100 Ground Power Unit
  • Designed for small to medium size, fixed wing aircraft.
  • Excellent for testing and troubleshooting (avionics, TMDE, electronics, and hydraulics).
  • One person can easily maneuver and operate the unit.
  • Will charge and condition vehicle batteries when unit is left connected to vehicle ac power required).
  • GPU will back-charge off a vehicle charging system (no ac required).

TI4100 GPU-24 Specifications

DC Output: 1500 peak starting amps
100 amps continuous @ 28.5 Vdc (when plugged into ac power)
123 amp hours (3362 watt hours) with ac power
23 amp hours (512 watt hours) of rechargeable battery power without ac
AC Input: Operates and charges from single phase 200-260 Vac 50/60 Hz
20 amps @ 240 Vac
Requires 30 amp service (contact Tesla™ Industries for receptacle information)
Recharging Rate: 19 minutes (from full discharge) @ 25°C
Dimensions: 36.25" L x 19.25" W x 15.97" H
920.75 mm x 489.0 mm x 405.80 mm
Weight: 112 lbs (50.80 kg)
Warranty: 2 Years (3 Year Optional)

Alternate NSN Codes:
TI4100 GPU-24 / NSN: 6130-01-445-9641
TIMV4100 GPU-24 / NSN: 6130-01-475-5327
