TI2000 GPU-24

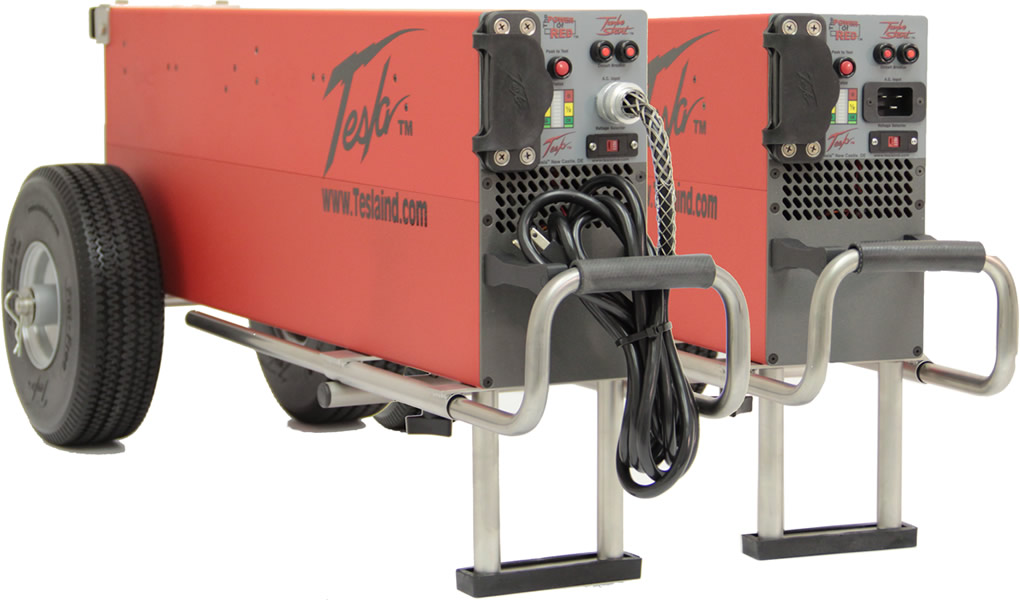

TI2000 Ground Power Unit

This junior version of the TI3000 is a viable alternative if budget concerns limit your options. This system provides the same 3,000 peak starting amps, but with 25 continuous amps of dc power.

  • Ideal for hangars, FOBs, motor pools, and deployments.
  • Excellent for testing and troubleshooting (avionics, TMDE, electronics, and hydraulics).
  • One person can easily maneuver and operate the unit.
  • Will charge and condition vehicle batteries when unit is left connected to vehicle (ac power required).
  • GPU will back-charge off a vehicle charging system (no ac required).

TI2000 GPU-24 Specifications

DC Output: 3000 peak starting amps
25 amps continuous @ 28.5 Vdc (when plugged into ac power)
71 amp hours (1736 watt hours) with ac power
46 amp hours (1024 watt hours) of rechargeable battery power without ac
AC Input: Operates and charges from Single Phase 100-260 Vac, 50/60 Hz
10 amps @ 120 Vac
5 amps @ 240 Vac
Recharging Rate: 115 minutes (from full discharge) @ 25°C
Dimensions: 36.38" L x 14.25" W x 15.64" H
924.10 mm x 362.0 mm x 397.20 mm
Weight: 124 lbs (56.24 kg)
Warranty: 2 Years (3 Year Optional)

Alternate NSN Codes:
TI2000 GPU-24 / NSN: 6130-01-445-9539
TIMV2000 GPU-24 / NSN: 6130-01-475-5314
