TI5400A 400Hz GPU-24 UAV ACDC

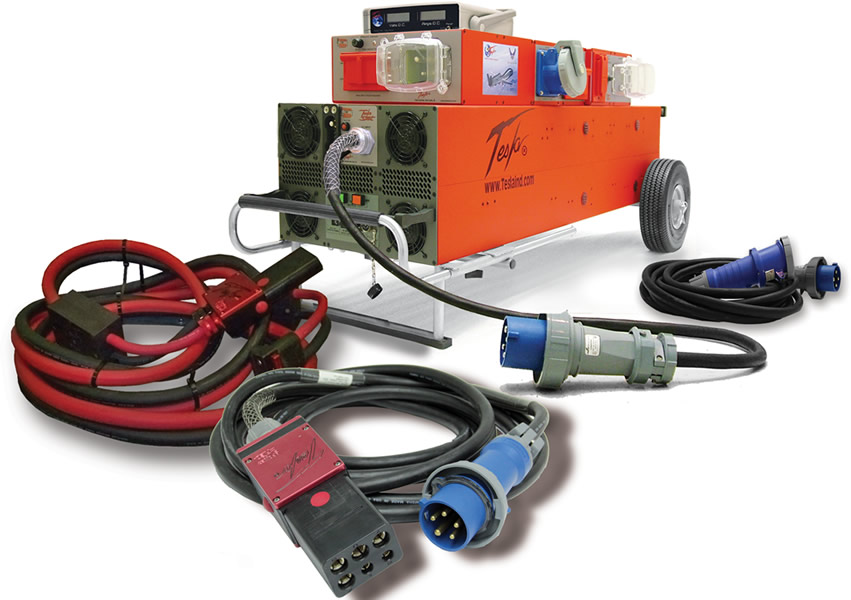

The Tesla™ TI5400A 400Hz GPU-24 UAV ACDC is expertly engineered as a single source of power for the Global Hawk UAV and other UAV systems. Using a 30kVA 3-phase 400 Hz. generator, the TI5400A 400 Hz GPU-24 UAV ACDC provides reliable ground power and filtered 400 Hz power for UAV aircraft. Additionally, a Pure Sine Wave Inverter with a 60 Hz 120 Vac outlet allows you to conveniently plug in laptops, cell phone chargers, and other electronic equipment.

TI5400A 400Hz GPU-24 UAV ACDC Specifications

DC Output	3000 peak starting amps 400 amps continuous @ 28.5 Vdc (when plugged into ac power) 446 amp hours (12424 watt hours) with three phase ac power 46 amp hours (1024 watt hours) of rechargeable battery power without three phase ac
AC Input	Operates and charges from either three phase 187-260 Vac 50/60 Hz or three phase 200 Y 115 Vac 400 Hz 42 amps @ 208 Vac 50/60 Hz 75 amps @ 200 Vac 400 Hz Requires 60 amp service for 50/60 Hz (contact Tesla™ Industries for receptacle information) Requires 100 amp service for 400 Hz (contact Tesla™ Industries for receptacle information)
Recharging Rate	12 minutes (from full discharge) @ 25°C
Dimensions	50.23” L x 24.50” W x 22.28” H 1275.80 mm x 622.30 mm x 565.80 mm
GPU Storage Temperature:	-65°C to 105°C (-85°F to 221°F)
Weight	292 lbs (132.44 kg)
Warranty	2 Years (3 Year Optional)

TI5400A 400Hz GPU-24 UAV ACDC Components

The Tesla™ TI5400A 400Hz GPU UAV ACDC is expertly engineered as a single source of power for the Global Hawk UAV and other UAV systems. Using a 30kVA 3-phase 400 Hz generator, the TI5400A 400Hz GPU UAV ACDC provides reliable ground power and filtered 400 Hz power for UAV aircraft. Additionally, a Pure Sine Wave Inverter with a 60 Hz 120 Vac outlet allows you to conveniently plug in laptops, cell phone chargers, and other electronic equipment.

3-Phase 400 Hz Power

The TI5400 400Hz GPU UAV ACDC comes equipped with a 3-phase 200Y/115 Vac 400 Hz input under a weatherproof cover. This input receives a 400 Hz cable assembly that will connect to any standard 3-phase 200Y/115 Vac 400 Hz receptacle.

EMC Filter / AC Filter

The 400 Hz 208Y/120 VAC Output provides filtered 400 Hz 208Y/120 Vac at 30 amps for powering aircraft systems. Connected directly to the 400 Hz ac input, the filter eliminates potentially harmful surges and high frequency noise and harmonics.

Pure Sine Wave Inverter with Power Outlet

Another standard feature is the 1,800 Watt ac uninterruptible pure sine wave inverter with 60 Hz 120V power outlet. The outlet makes it convenient to plug in laptops, test instruments, cell phone chargers, and other electronic devices without using an alternate power source.

DC Output with “Push to Test” Button and LED Charge Status Meter

The DC Output Receptacle is an aviation battery style receptacle and will provide regulated 30.25 Vdc at up to 400 amps when the unit is plugged into 3-phase power. Up to 3000 peak amps are available from the internal cells. The built-in Charge Status Meter (via the “Push to Test” button) serves as a recharge state indicator for the dc output.

TI3100A Digital Volt / Amp Meter (DVAM)

The Tesla™ Digital Volt / Amp Meter is a high powered measuring solution. The TI3100A DVAM provides measurements for DC voltage from 0 to 200 volts or amp draws between 0 to 2000 amps, with a flip of a switch, for Aircraft and vehicle. Integrated with the Tesla™ Turbo Start™ GPU power supply, DVAM is a valuable tool for troubleshooting and conducting systems checks.

Alternate NSN Codes: TI2000-541 / NSN: 6130-01-600-0509

Download Docs

TI5400A 400Hz Manual

TI5400A 400Hz Tech Sheet

TI5400 Series Product Features Comparison Chart

Included

TI7000-056 7ft. Hardwired Three Phase Plug AC Line Cord

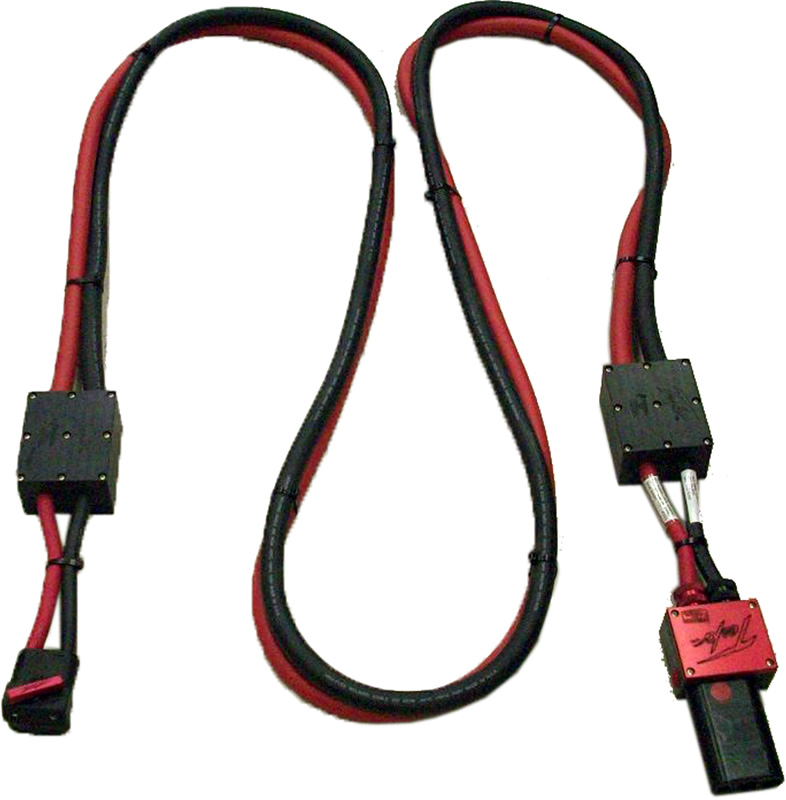

TI2007-024 17 ft.350MCM DC Aviation Cable Assembly
TI2000-070 25ft. 3-phase Extension Cable with 460P9W
TI2006-309 25ft. 400Hz Interface Cable
TI3100A DVAM Digital Volt / Amp meter (DVAM)
TI2006-001 DVAM Interface Line Cord

TI2000-541 / NSN: 6130016000509

TI5400A 400Hz GPU-24 UAV ACDC
TI7000-129 Shipping Case
TI7000-083 Protective Cover

Additional Features:

28.5 Vdc @ 400 ampsw continuous power output.
TI2007-024 17’ 350MCM Cable has voltage drop of less than 500 mV @ 400 amps maintains
> 28 V at the end of the dc power NATO output cable at full power.
20 us transient response time from 0 amps to full power (400 amps) with less than 2.5 volts of undershoot.
20 us transient response time from full power (400 amps) to 0 amps with less than 2.5 volts of overshoot.
10.4 kVA 30 amp 200 Y 115 VAC 3-phase 400 Hz ac filtering produces “clean” power to test avionics and weapons systems (when operating from 400 Hz input power).
2 kW 16.66 amp / 24 amp surge pure sine wave ac inverter with 60 Hz 120 Vac GFI power outlet.
50 Hz. 240 Vac available on request.
Meets or exceeds Global Hawk aircraft system requirements.
Non-hazardous, dry-cell technology.
Exceeds MIL-STD-810/MIL-STD-461.
