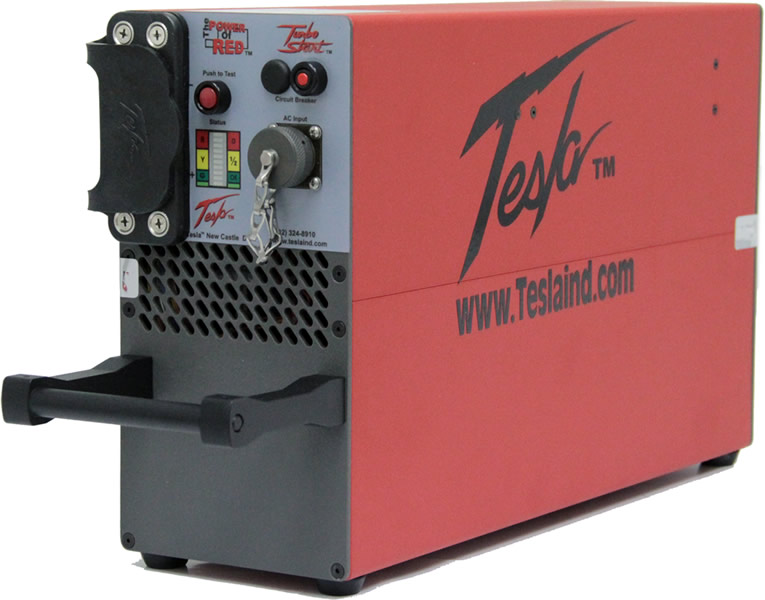

TI500 GPU-24

The TI500 GPU-24 offers tremendous flexibility, as it will connect to an aircraft’s 400Hz ac system. At just 36 lbs., the TI500 can be transported easily.

50/60 Hz Vac or 400 Hz Vac aircraft power (with correct line cord).
Ideal for hangars, FOBs, motor pools, and deployments.
Excellent for testing and troubleshooting (avionics, TMDE, electronics, and hydraulics).
One person can easily maneuver and operate the unit.
Will charge and condition vehicle batteries when unit is left connected to vehicle (ac power required).
GPU will back-charge off a vehicle charging system (no ac required).

TI500 GPU-24 Specifications

DC Output:	750 peak starting amps 25 amps continuous @ 28.5 Vdc (when plugged into ac power) 36.5 amp hours (968 watt hours) with ac power 11.5 amp hours (256 watt hours) of rechargeable battery power without ac
AC Input:	Operates and charges from Single Phase 100-260 Vac, 50/60/400 Hz 10 amps @ 120 Vac 5 amps @ 240 Vac
Recharging Rate:	33 minutes (from full discharge) @ 25°C
Dimensions:	20.61" L x 5.2" W x 10.56" H 523.49 mm x 132.08 mm x 268.25 mm
Weight:	36 lbs (16.4 kg)
Warranty:	2 Years (3 Year Optional)
