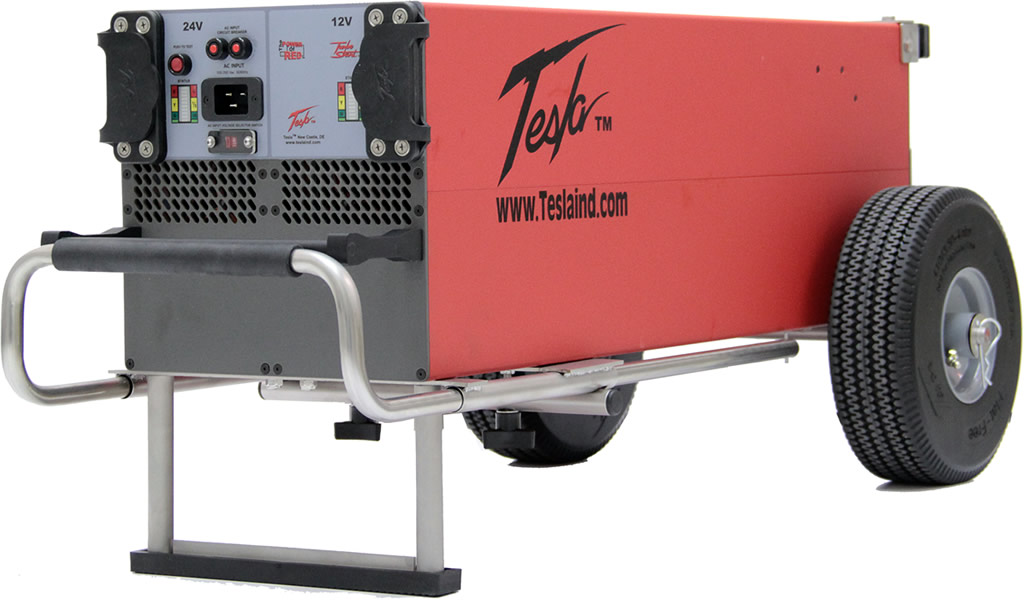

TI2560 12-24 GPU

The TI2560-12-24 GPU has been designed as a stand-alone source of dc power for ground support systems and maintenance operations. Using a single 120 Vac power source, it will provide both 12 Vdc and 24 Vdc continuous output power.

Dual Capacity Meter (with dc) / Recharge State Indicators (with ac).
Will charge and condition vehicle batteries when unit is left connected to vehicle (ac power required).
Plugs into a standard ac power outlet to recharge cells.

TI2560 12-24 GPU Specifications

24 Vdc Output	3000 peak starting amps 25 amps continuous @ 28.5 Vdc (when plugged into ac power) 71 amp hours (1736 watt hours) with ac power 46 amp hours (1024 watt hours) of rechargeable battery power without ac
12 Vdc Output	3000 peak starting amps 20 amps continuous @ 14.25 Vdc (when plugged into ac power) 66 amp hours (1309 watt hours) with ac power 46 amp hours (1024 watt hours) of rechargeable battery power without ac
AC Input:	Operates and charges from Single Phase 100-260 Vac 50/60 Hz 14.70 Amps @ 120 Vac 7.35 amps @ 240 Vac
Recharging Rate:	24 Vdc: 115 minutes (from full discharge) @ 25°C 12 Vdc: 143 minutes (from full discharge) @ 25°C
Dimensions:	37.28" L x 19.25" W x 15.97" H 946.91 mm x 488.95 mm x 405.64 mm
Weight:	181.5 lbs (82.32 kg)
Warranty:	2 Years (3 Year Optional)
