TI3000 GPU-24-UNV
This is the universal version of the TI3000 GPU-24. The universal plug automatically selects correct voltage. It easily wheels by hand through hangars and motor pools and provides 3000 amps of power - eliminating the need to slave start from other vehicles or use multiple personnel.
- Ideal for hangars, FOBs, motor pools, and deployments.
- Excellent for testing and troubleshooting (avionics, TMDE, electronics, and hydraulics).
- One person can easily maneuver and operate the unit.
- Will charge and condition vehicle batteries when unit is left connected to vehicle (ac power required).
- GPU will back-charge off a vehicle charging system (no ac required).
- *Shown in tan. Also available in standard Tesla™ red.
TI3000 GPU-24 Specifications
| DC Output: | 3000 peak starting amps 50 amps continuous @ 28.5 Vdc (when plugged into ac power) 96 amp hours (2449 watt hours) with ac power 46 amp hours (1024 watt hours) of rechargeable battery power without ac |
| AC Input: | Operates and charges from Single Phase 100-260 Vac, 50/60 Hz 20 amps @ 120 Vac 10 amps @ 240 Vac |
| Recharging Rate: | 60 minutes (from full discharge) @ 25°C |
| Dimensions: | 36.40" L x 14.25" W x 15.64" H 924.40 mm x 362 mm x 397.20 mm |
| Weight: | 127 lbs (57.60 kg) |
| Warranty: | 2 Years (3 Year Optional) |
Download Docs
Included

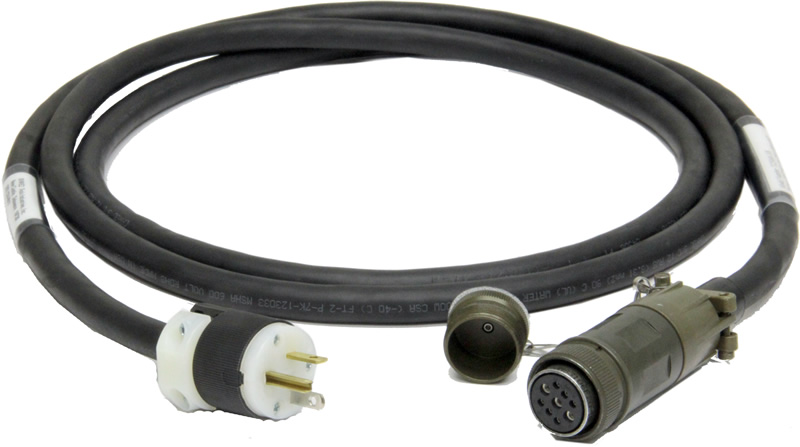

- TI25000-108 10ft. AC Line Cord 120 VAC

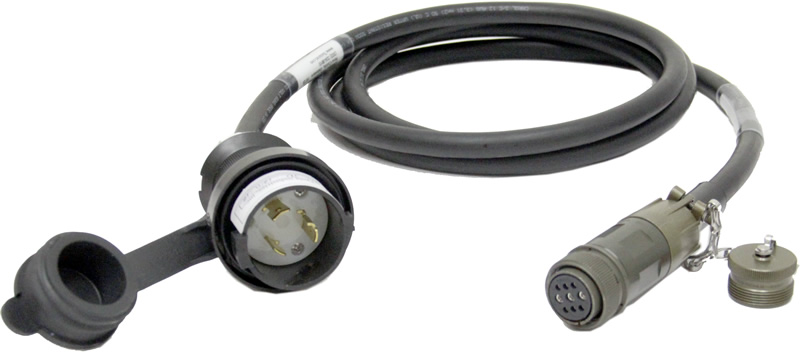

- TI25000-110 10ft. AC Line Cord 240 VAC with NEMA L6-20P Shrouded Water Tight Male Plug
and - TI2007-208 8' DC Aviation Cable Assembly OR
- TI2007-315 15' DC NATO Cable Assembly
TI3000 GPU-24-UNV Accessories
TI7000-047Protective Cover
TI7000-025Shipping Case
TI25000-416 - 25' 110 Volt Adapter for hardwired version
