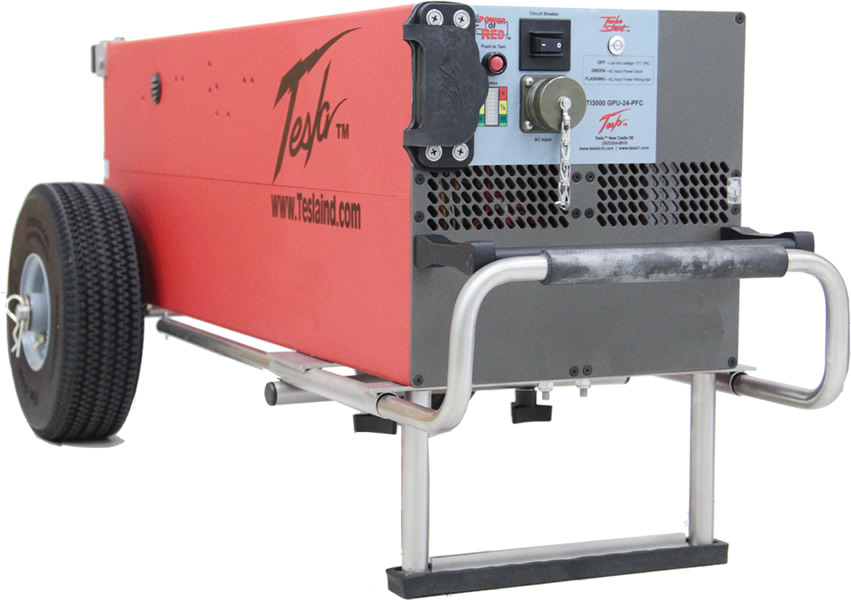

TI3000 GPU-24-PFC

70 continuous amps from a single phase outlet
90 continuous amps for 4.5 hours with ac power
0.999% power factor
<4% THD (Total Harmonic Distortion)
3000 peak starting amps.
Ideal for small to medium size, fixed wing aircraft.
Perfect for testing and troubleshooting (avionics, TMDE, electronics, and hydraulics).
System back-charges from the started vehicles’ engine in minutes.
Will charge and condition vehicle batteries when unit is left connected to vehicle (AC power required).
One person can maneuver and operate the unit. Safe for flight, non-hazardous, dry-cell technology.

TI3000 GPU-24-PFC Specifications

DC Output:	3000 peak starting amps 70 amps continuous @ 28.5 Vdc (when plugged into ac power) 96 amp hours (2449 watt hours) with ac power 46 amp hours (2449 watt hours) of rechargeable battery power without ac
AC Input:	Operates and charges from single phase 105-260 Vac / 40 Hz - 450 Hz 19.8 amps @ 120 Vac 9.9 amps @ 240 Vac
Recharging Rate:	35 minutes (from full discharge) @ 25°C
Dimensions:	37.28" L x 19.25" W x 15.97" H 946.91 mm x 488.95 mm x 405.64 mm
Weight:	158.5 lbs (71.89 kg)
Warranty:	2 Years (3 Year Optional)
