Tesla™
Power Anytime, Anywhere

TI3500 GPU-24

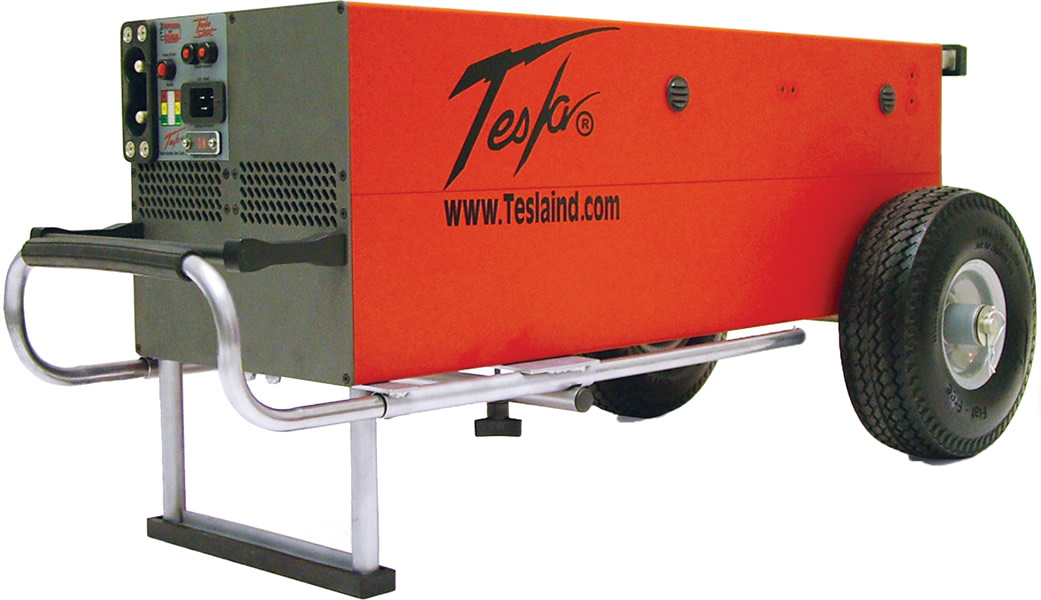

TI3500 Ground Power Unit

The TI3500 is one of Tesla’s™ most powerful systems. The unit provides over 2,048 watt hours without ac power and 142 amp hours (3,473 watt hours) with ac power. It will recharge in two hours from full discharge.

  • Ideal for hangars, FOBs, motor pools, and deployments.
  • Excellent for testing and troubleshooting (avionics, TMDE, electronics, and hydraulics).
  • One person can easily maneuver and operate the unit.
  • Will charge and condition vehicle batteries when unit is left connected to vehicle (ac power required).
  • GPU will back-charge off a vehicle charging system (no ac required).

TI3500 GPU-24 Specifications

DC Output: 3500 peak starting amps
50 amps continuous @ 28.5 Vdc (when plugged into ac power)
142 amp hours (3473 watt hours) with ac power
92 amp hours (2048 watt hours) of rechargeable battery power without ac
AC Input: Operates and charges from Single Phase 100-260 Vac, 50/60 Hz
20 amps @ 120 Vac
10 amps @ 240 Vac
Recharging Rate: 115 minutes (from full discharge) @ 25°C
Dimensions: 37.28" L x 19.25" W x 15.97" H
946.91 mm x 488.95 mm x 405.64 mm
Weight: 234 lbs (106.14 kg)
Warranty: 2 Years (3 Year Optional)

Alternate NSN Codes:
TI3500 GPU-24 / NSN: 6130-01-452-2796
TIMV3500 GPU-24 / NSN: 6130-01-475-5325
