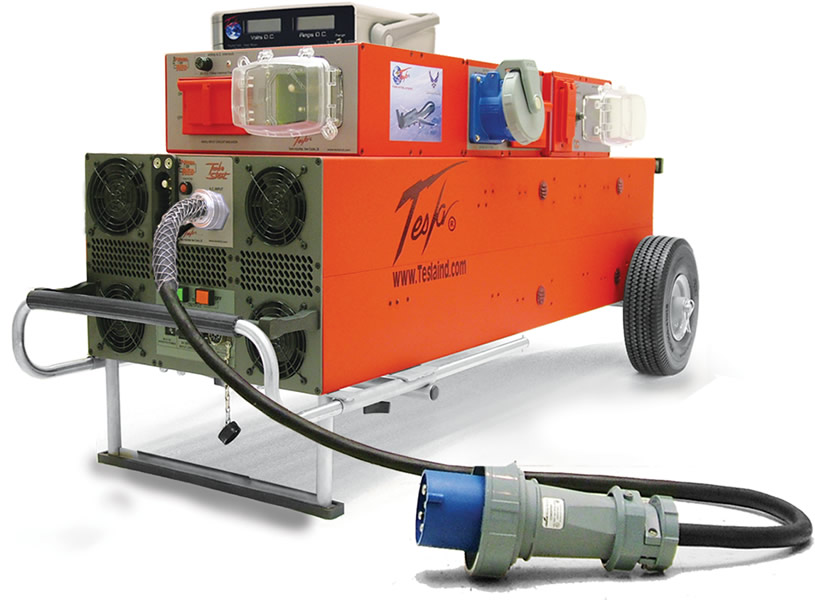

TI5400 400Hz GPU-24 UAV ACDC

NSN: 6130015724833 CL IX (NAVY)
NSN: 6130016011263 CL IX (Air Force)

The TI5400a 400Hz GPU-24 UAV ACDC offers tremendous flexibility to power or start any 24 volt vehicle or aircraft, provide reliable 50/60 Hz and filtered 400 Hz power for a UAV aircraft. All this plus, a Pure Sine Wave Inverter with a 60 Hz 120 VAC outlet.

DC Output:

3000 peak starting amps
400 amps continuous @ 30.25 VDC - 12100 Watts (when plugged into AC power)
446 amps (12,424 watt hrs) with three-phase power
46 amps (1,024 watt hrs) of rechargeable batter power without three-phase AC

Recharge rate from full discharge:

12 minutes (from full discharge) with 208-240 VAC power, three-phase @ 25°C

AC Input:

Operates and charges from either three phase 200-260 VAC 50/60 Hz or three-phase 200 Y 115 VAC 400 Hz.
42 Amps @ 208 VAC 50/60 Hz - 8736 Watts
75 Amps @ 200 VAC 400 Hz - 1500 Watts
Requires 60 amp service for 50/60 Hz (contact Tesla for receptacle information)
Requires 100 amp service for 400 Hz (contact Tesla for receptacle information)

TI5400 400Hz GPU-24 UAV ACDC Specifications

AC kW Inverter	1800 watts 120 Vac 60 Hz Pure Sine Wave <3% THD. 15 amps output Surge 2900 watts Dual GFI receptacle
Inverter Operating Temperature:	-20°C to 65°C (-4°F to 150°F)
Inverter Storage Temperature:	-40°C to 65°C (-40°F to 150°F)
GPU Operating Temperature:	-40°C to 60°C (-40°F to 140°F) without AC power -40°C to 55°C (-40°F to 131°F) with AC power
GPU Storage Temperature:	-65°C to 105°C (-85°F to 221°F)
Power Cell	Dry, high rate discharge, rechargeable, maintenance-free
DC Ouput	30.25 Vdc @ 400 amps continuous power 24.0 Vdc @ 46 amp hours rechargeable power
Power Output Rate	446 amp hours (12,424 watt hrs) with 208-240 Vac power, 3-phase 46 amp hours (1,024 watt hrs) without 208-240 Vac power, 3-phase 1 hour constant power to 20.0 end VDC
Size	50.23" L x 24.50" W x 22.28" H 1275.80 mm 621.80 mm x 565.80 mm
Weight	292 lbs (131.54 kg)

TI5400 400Hz GPU-24 UAV ACDC Components

The Tesla™ TI5400 400Hz GPU UAV ACDC is expertly engineered as a single source of power for the Global Hawk UAV and other UAV systems. Using a 30kVA 3-phase 400 Hz generator, the TI5400 400Hz GPU UAV ACDC provides reliable ground power and filtered 400 Hz power for UAV aircraft. Additionally, a Pure Sine Wave Inverter with a 60 Hz 120 Vac outlet allows you to conveniently plug in laptops, cell phone chargers, and other electronic equipment.

3-Phase 400 Hz Power

The TI5400 400Hz GPU UAV ACDC comes equipped with a 3-phase 200Y/115 Vac 400 Hz Input under a weatherproof cover. This input receives a 400 Hz cable assembly that will connect to any standard 3-phase 200Y/115 Vac 400 Hz receptacle.

EMC Filter / AC Filter

The 400 Hz 208Y/120 Vac Output provides filtered 400 Hz 208Y/120 Vac at 30 amps for powering aircraft systems. Connected directly to the 400 Hz ac input, the filter eliminates potentially harmful surges and high frequency noise and harmonics.

Pure Sine Wave Inverter with Power Outlet

Another standard feature is the 1,800 Watt ac uninterruptible pure sine wave inverter with 60 Hz 120V power outlet. The outlet makes it convenient to plug in laptops, test instruments, cell phone chargers, and other electronic devices without using an alternate power source.

DC Output with “Push to Test” Button and LED Charge Status Meter

The dc output receptacle is an aviation battery style receptacle and will provide regulated 30.25 Vdc at up to 400 amps when the unit is plugged into 3-phase power. Up to 3000 peak amps are available from the internal cells. The built-in Charge Status Meter (via the "Push to Test" button) serves as a recharge state indicator for the dc output.

TI3100A Digital Volt / Amp Meter (DVAM)

The Tesla™ Digital Volt / Amp Meter is a high powered measuring solution. The TI3100A DVAM provides measurements for dc voltage from 0 to 200 volts or amp draws between 0 to 2000 amps, with a flip of a switch, for Aircraft and vehicle. Integrated with the Tesla™ Turbo Start™ GPU power supply, DVAM is a valuable tool for troubleshooting and conducting systems checks.

Alternate NSN Codes:
NSN: 6130-01-572-4833 CL IX (NAVY)
NSN: 6130-01-601-1263 CL IX (Air Force)

Download Docs

TI5400 400Hz Manual

TI5400 400Hz Tech Sheet

TI5400 Series Product Features Comparison Chart

Included

TI2007-425 25 ft. (2/O)DC Aviation Cable Assembly (Navy) OR
TI2007-415 15ft.(2/O) DC Aviation Assembly (Air Force)
TI2000-070 25ft. 3-phase Extension Cable with 460P9W

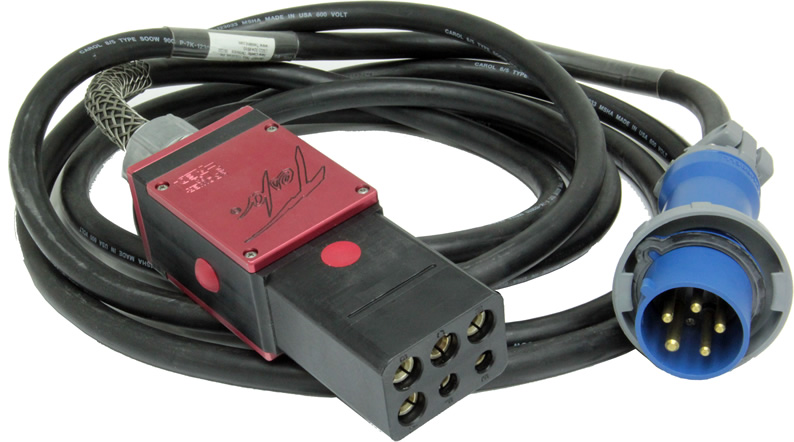

TI2006-309 25ft. 400Hz Interface Cable
TI3100A DVAM Digital Volt / Amp meter (DVAM)
TI2006-001 DVAM Interface Line Cord

Additional Features:

10.4 kVA 30 amp 200Y/115 Vac 400 Hz ac filtering produces "clean" power to test avionics and weapons systems.
2 kW ac inverter with 60 Hz 120 Vac dual GFI power outlet
Ideal for hangars, FARPs, flight lines, motor pools, and deployments
Perfect for testing and troubleshooting (avionics, TMDE, electronics and hydraulics)
Technology upgrades available
GPU will back-charge off a vehicle charging system (no ac required)
Will charge and condition batteries when unit is left connected to vehicle (ac power required)
TI2007-024 17’ 350MCM Cable has voltage drop of less than 500 mV @ 400 amps maintains > 28 V at the end of the dc NATO output cable at full power.
20 us transient response time from 0 amps to full power (400 amps) with less than 2.5 volts of undershoot.
20 us transient response time from full power (400 amps) to 0 amps with less than 2.5 volts of overshoot.
Meets or exceeds Global Hawk aircraft system requirements.
Non-hazardous, dry-cell technology.
Exceeds MIL-STD-810/MIL-STD-461.
Exceeds MIL-STD-704.
