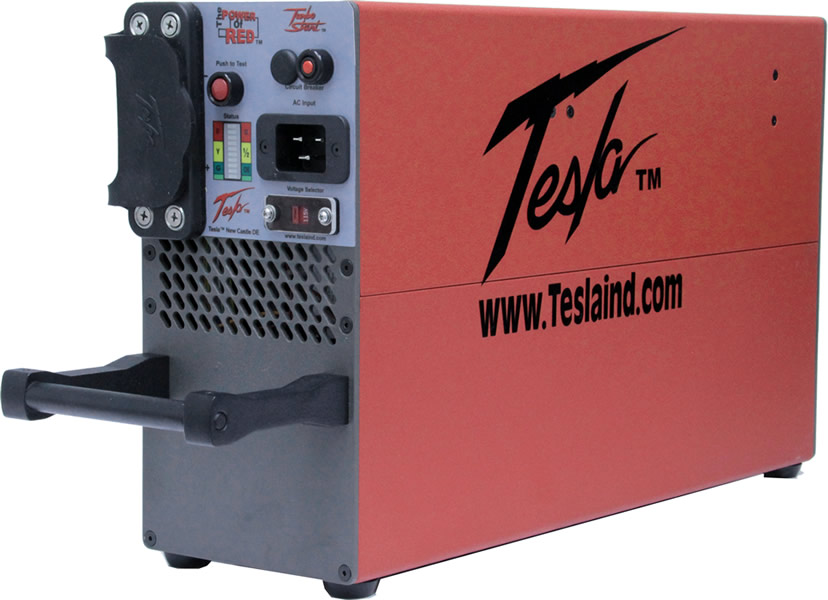

TI1000 GPU-24

Ideal for hangars, FOBs, motor pools, and deployments.
Light weight, compact, and easily stored.
Excellent for testing and troubleshooting (avionics, TMDE, electronics, and hydraulics).
Non-hazardous, dry-cell technology that can be trans- ported aboard an aircraft.
GPU will back-charge off a vehicle charging system (no ac required).
Will charge and condition vehicle batteries when unit is left connected to vehicle (ac power required).

TI1000 GPU-24 Specifications

DC Output:	1500 Peak Starting Amps 25 amps continuous @ 28.5 Vdc (plugged into ac power) 48 amp hours (1224 watts) with ac power 23 amp hours (512 watts) of rechargeable power without ac power
AC Input:	Operates and charges from Single Phase 100-260 Vac, 50/60Hz 10 amps @ 120 Vac 5 amps @ 240 Vac
Recharging Rate:	60 minutes (from full discharge) @ 25°C
Dimensions:	20.61" L x 5.2" W x 10.56" H 523.49 mm x 132.08 mm x 268.25 mm
Weight:	57 lbs (28.85 kg)
Warranty:	2 Years (3 Year Optional)
