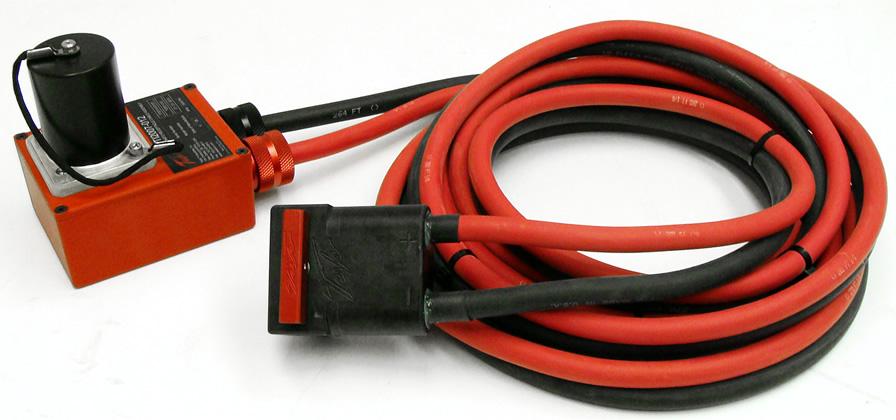

TI2007-012 DC to NATO Receptacle Cable Assembly

The DC to NATO Receptacle Cable Assembly can provide safe and efficient power transfer of up to 3000 peak amps — no more damage or injury to equipment, plugs and personnel.

Weatherproof Construction

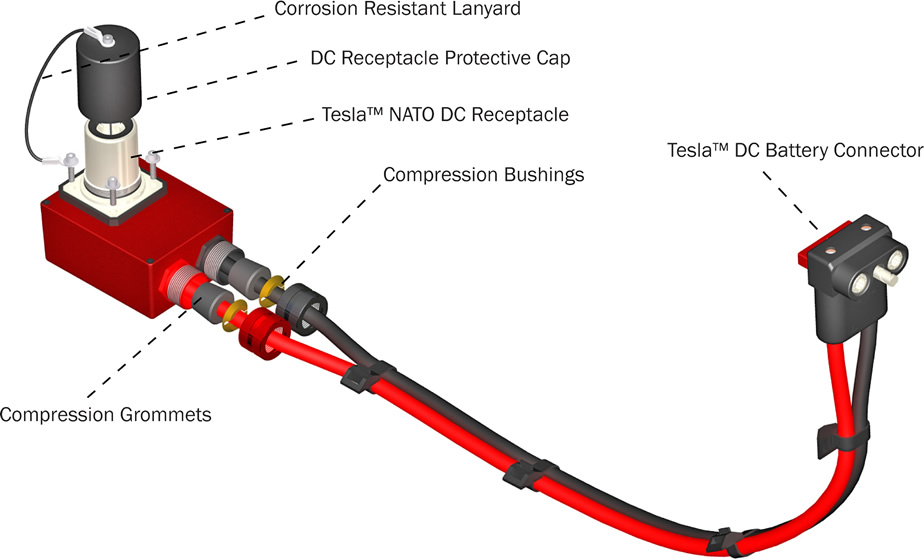

The Tesla™ NATO DC Receptacle includes a durable cap tethered with a corrosion resistant lanyard. The cap, along with the cap seal at the base of the receptacle, protect the receptacle from rain, snow, sand and other harmful debris.

• Maintenance-free design
• Rated to 3000 peak amps
• 15 ft. 1Ø cable assembly
• Clamped cable connections
• UV, fuel, fungus, and oil resistant
• Easy component replacement
• Manufactured by Tesla™
• Exceeds MIL-STD-810
• 2 Year Warranty

Connector Parts & Tools

TI2005-488
DC Battery Connector
Insertion ⁄ Extraction Tool TI2005-490
DC Battery Connector
Replacement Contacts TI2005-199
Cable Crimp Bullets

TI2004-444
NATO Positive Post
For Newer Style NATO Plugs indicated by Black Tip
TI2005-117
NATO Positive Post
NSN: 5935015238914

TI2005-121
NATO Negative Contact
NSN: 5999015250582

TI2005-126
NATO Negative Contact Insertion ⁄ Extraction Tool
NSN: 5120015238761 TI27000-082
NATO Positive Contact Insertion ⁄ Extraction Tool
NSN: 5120015277729

Ring Terminals


TI2005-072
Negative Cord Grip


TI2005-073
Positive Cord Grip
NSN: 5340015244530

TI2005-074
Negative Cap
NSN: 5999015238390

TI2005-075
Positive Cap
NSN: 5999015245077

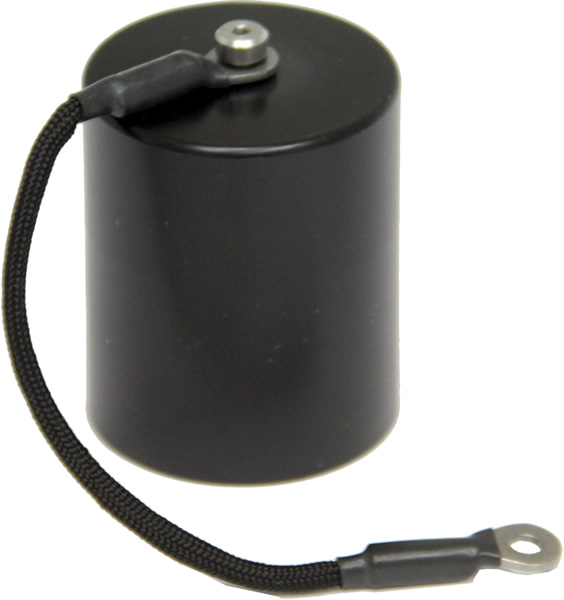

TI2000-418
Dust Cap with Lanyard
