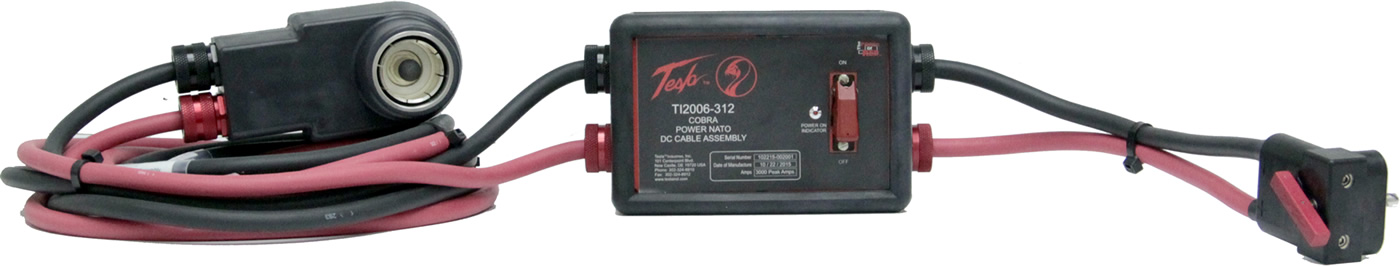

TI2006-312 Cobra™ Power NATO DC Cable Assembly

The Tesla™ Cobra Power NATO DC Cable Assembly is equipped with a high current switchable control. A hermetically sealed toggle switch, along with a protective switch guard, allows the safe transfer of up to 3000 peak amps — no more arcing or fusing. When active, a status LED illuminates to let the user know power is present.

Incorporating state-of-the-art electronic control and monitoring circuitry, the Cobra™ Smart NATO Slave Cable can provide safe and efficient power transfer of up to 3000 peak amps — no more damage or injury to equipment, plugs and personnel.

Internal Cable Connections

Unlike slave cables, that are molded directly into the plug housing, easily accessible lugs allow for direct termination inside of the plug. Additionally, compression grommets and bushings provide strain relief. This unique combination of protection eliminates potential shocks from exposed wiring due to cable stretching and splicing.

• Maintenance-free design
• State-of-the-art electronic control
• Reliable switching up to 3000 peak amps
• 500 amps continuous
• 15 ft. 1Ø cable assembly
• 25 ft. cable assembly
• Clamped cable connections
• UV, fuel, fungus, and oil resistant
• Easy component replacement
• Manufactured by Tesla™
• Exceeds MIL-STD-810
• Tested to withstand 50 G of force
• 2 Year Warranty

Connector Parts & Tools

TI2005-488
DC Battery Connector
Insertion ⁄ Extraction Tool TI2005-490
DC Battery Connector
Replacement Contacts TI2005-199
Cable Crimp Bullets

TI2004-444
NATO Positive Post
For Newer Style NATO Plugs indicated by Black Tip
TI2005-117
NATO Positive Post
NSN: 5935015238914

TI2005-121
NATO Negative Contact
NSN: 5999015250582

TI2005-126
NATO Negative Contact Insertion ⁄ Extraction Tool
NSN: 5120015238761 TI27000-082
NATO Positive Contact Insertion ⁄ Extraction Tool
NSN: 5120015277729

Ring Terminals


TI2005-072
Negative Cord Grip


TI2005-073
Positive Cord Grip
NSN: 5340015244530

TI2005-074
Negative Cap
NSN: 5999015238390

TI2005-075
Positive Cap
NSN: 5999015245077
