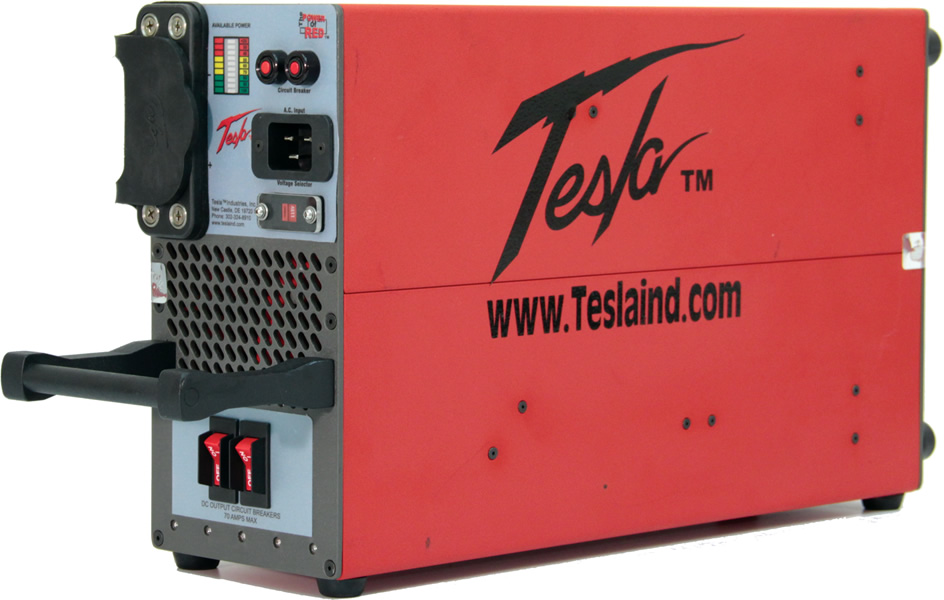

TI50A DC Power Supply

NSN: 6130016180204

Ideal for hangars, FOBs, motor pools, and deployments.
One person can easily maneuver and operate the unit.
Excellent for testing and troubleshooting (avionics, TMDE, electronics, and hydraulics).
Will charge and condition vehicle batteries when unit is left connected to vehicle (ac power required).
Operates with circuit breakers, therefore eliminating the need to replace blown fuses.
Safe for flight and travel.
NOTE: Unit is not rated for engine starting. It is to be used for ground maintenance only.

TI50A DC Power Supply Specifications

DC Output:	50 amps continuous @ 28.5 Vdc (when plugged into ac power)
AC Input:	Operates from Single Phase 100-260 Vac, 50/60 Hz 20 amps @ 120 Vac - 2400 Watts 10 amps @ 240 Vac - 2400 Watts
Dimensions:	20.61" L x 5.2" W x 10.56" H 523.49 mm x 132.08 mm x 268.25 mm
Weight:	15.85 lbs (7.18 kg)
Warranty:	2 Years (3 Year Optional)
