DC Battery Connectors

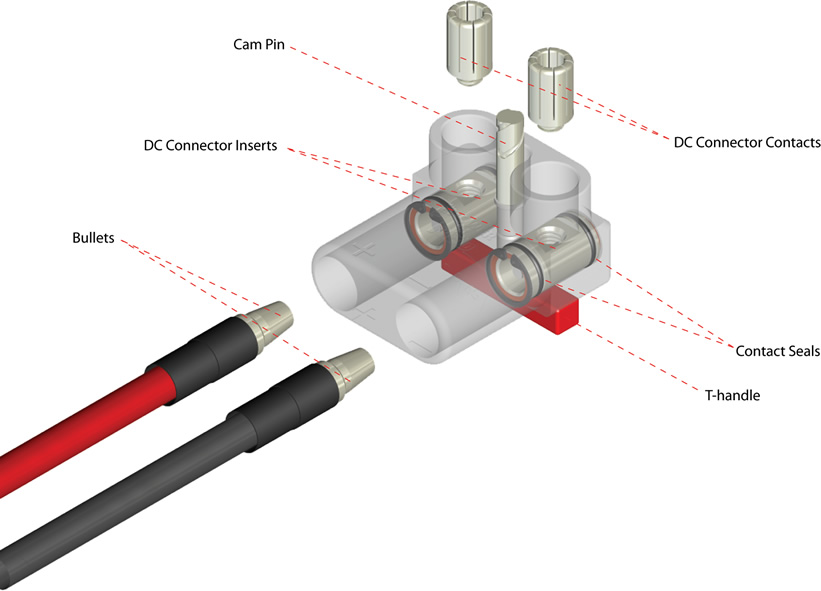

The Tesla™ DC Battery Connector’s internal cables are connected by crimpable bullets allowing for direct termination inside of the connector. The connector contacts are easily replaceable "in the field". The T-Handle makes for easy and quick connections to the receptacle. Three Connector/Receptacle combinations are available assuring the right cables are used for the receptacles or the cable won’t fit.

Rated to 3000 peak amps
Clamped cable connections
UV, fuel, fungus, water, and oil resistant
Easy component replacement
Manufactured by Tesla™
Exceeds MIL-STD-810
Tested to withstand 50 G of force
2 Year Warrranty

DC Battery Connector Ordering Options

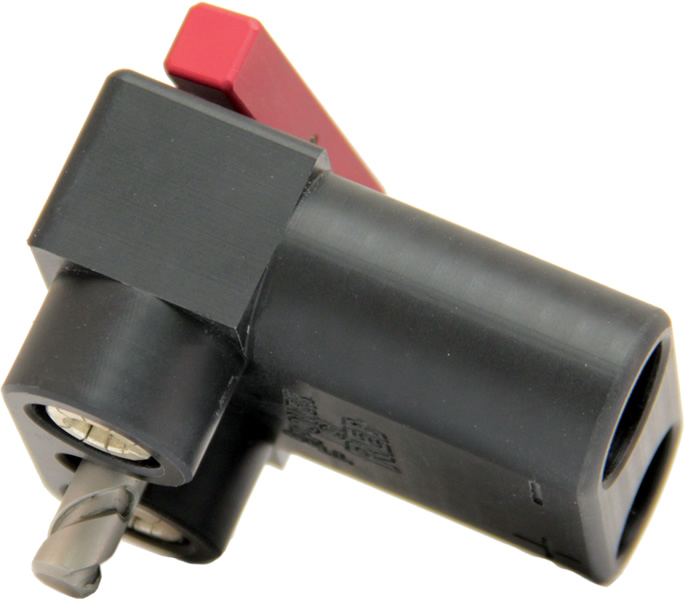

Key A TI2005-410 Key A is compatible with Miilitary Standard MS3509 and Tesla TI2005-379 DC Battery Receptacle. Key A comes standard with all Tesla™ Cable Assemblies
Key B TI2004-021 Only compatible with the TI2004-020 DC Battery Connector. Key B is the standard for all Tesla 12 Vdc on Ground Power Units.
Key C TI2004-108 Only compatible with the TI2004-109 DC Battery Connector.
