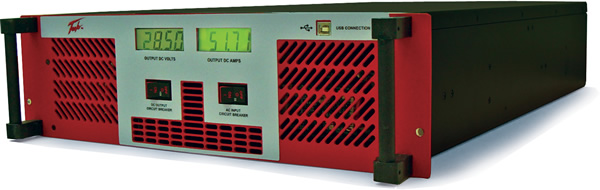

Astrapi i Rack Mount Power Supply Module
The Tesla™ Astrapi i Rack Mount Power Supply Module is expertly engineered as a single source of clean power for data centers and industrial control and communication equipment. The Power Supply Module is capable of delivering 6.3 kVA of reliable, filtered, regulated dc power while operating from single-phase ac power. As always, the unit is backed by a Tesla™ 2-year warranty, a trained support team, and an experienced staff of customer service professionals.
Astrapi i Rack Mount Power Supply Module Specifications
| Models: | AST100-12 14.25 V (12 V) @ 400 amps continuous AST100-24 28.5 V (24 V) @ 200 amps continuous AST100-48 57 Vdc (48 V) @ 112 amps continuous |
| AC Input: | Operates and charges from Single Phase or Three Phase 200-260 Vac 40 Hz - 1 kHz 33.5 amps @ 208 Vac 60 Hz Contact Tesla™ Industries for receptacle information. |
| Dimensions: | 28.98” L x 19” W x 5.19” H 736.2 mm x 482.6 mm x 131.9 mm |
| Weight: | 56 lbs (25.4 kg) |
| Warranty: |
|
Included
- TI2007-060 Single Phase AC Cord
OR - TI2007-061 Three Phase AC Cord
Features
- Ability to be ran paralleled or in a series.
- Maintenance-free design.
- Conforms to EIA-310 standard.
- Fits in a 3U rack space.
- Built-in Voltage and Amp Meter with backlighting.
- Exceeds MIL-STD-810/MIL-STD-461
- 99% efficient active power factor correction.
- 1% THD (Total Harmonic Distortion.)
- Host Gateway running LINUX Operating System.(optional)
- Communications interface to connect with other Tesla™ Astrapi i Modules.
