PARTS for TI3000 GPU-24
IMPORTANT NOTICE: If the unit is opened during its warranty period, the warranty will be voided.
Please contact Tesla Customer Service Department before making any repairs. Before reparing the unit yourself, please consider using our shop for repair. We have a quick turnaround and our repairs come with a one year warranty.
TI7000-106
12 AMP Single Pole Circuit Breaker
12 AMP Single Pole Circuit Breaker
TI16000-173
AC Receptacle (for circuit breaker front panel) - NEMA
AC Receptacle (for circuit breaker front panel) - NEMA
TI2010-035
AC Receptacle Assy. with cables-Fuse Style
AC Receptacle Assy. with cables-Fuse Style

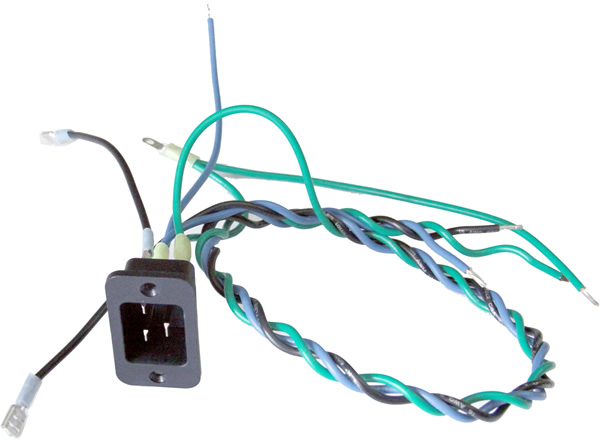

TI2010-084
AC Receptacle Assembly with cables-NEMA
AC Receptacle Assembly with cables-NEMA
TI2000-203
AC Receptacle with Fuse Box
AC Receptacle with Fuse Box
TI2005-003
Axle
Axle
TI2005-002
Axle Extension Kit
Axle Extension Kit
TI2000-028
Bar Graph Board
Bar Graph Board
TI24000-018T
Battery Cell Hardware Assembly
Battery Cell Hardware Assembly
TI7000-006
Battery Cells
Battery Cells
TI2005-022
Battery Strap
Battery Strap
TI2005-918
Bracket Cover (Rubber Rest Cover)
Bracket Cover (Rubber Rest Cover)
TI2005-025
Case Bottom
Case Bottom

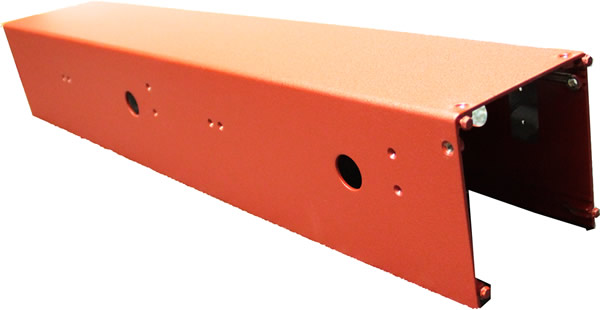

TI2005-026
Case Top
Case Top
TI2000-022
Converter Board
Converter Board
TI2000-018
Cooling Fan and Connector
Cooling Fan and Connector
TI2005-379
DC Battery Receptacle
DC Battery Receptacle
TI2011-501
DC Harness- Internal
DC Harness- Internal
TI2005-012
DC L-Bar
DC L-Bar
TI2005-925
DC Receptacle Dust Cover (Rubber)
DC Receptacle Dust Cover (Rubber)
TI21000-083
Fan Guard
Fan Guard

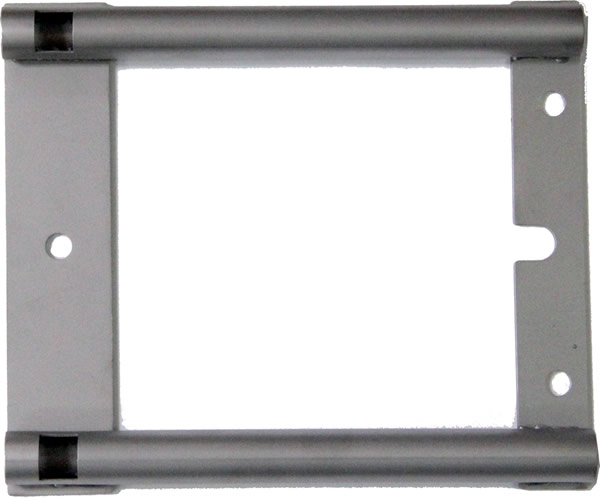

TI2005-020
Frame for Telescopic Handle
Frame for Telescopic Handle
TI2005-458
Front Panel - Face Plate Only - NEMA
Front Panel - Face Plate Only - NEMA
TI2005-015
Front Panel - Face Plate Only (Fuse Style)
Front Panel - Face Plate Only (Fuse Style)

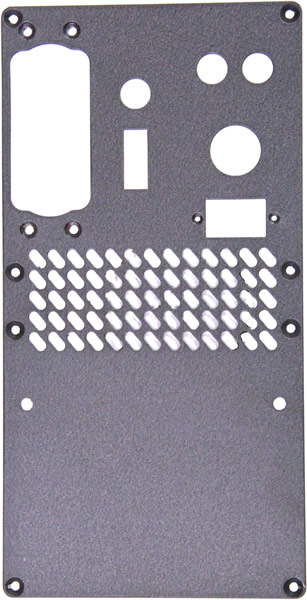

TI2005-457
Front Panel - Face Plate Only (Military) - NEMA
Front Panel - Face Plate Only (Military) - NEMA

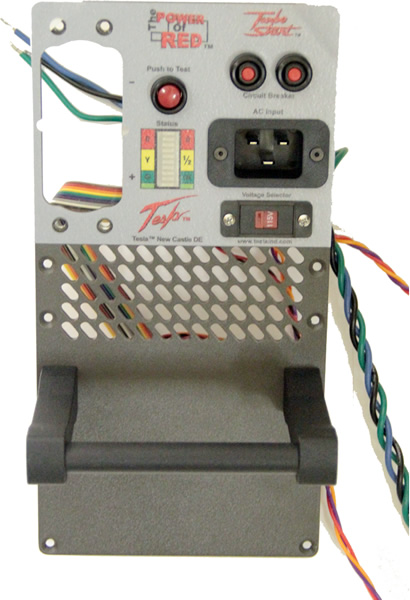

TI2000-066
Front Panel Complete with Push to Test (Commercial)-NEMA
Front Panel Complete with Push to Test (Commercial)-NEMA

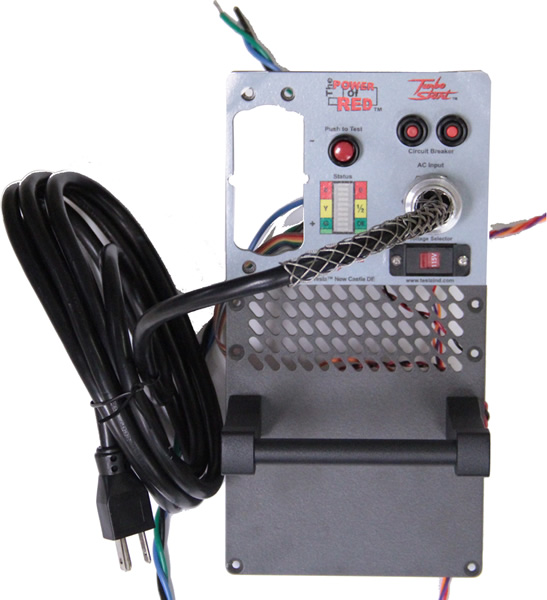

TI2000-065
Front Panel Complete with Push to Test (Military)- NEMA
Front Panel Complete with Push to Test (Military)- NEMA
TI2000-008
Front Panel Complete with Push to Test (Fuse Style)
Front Panel Complete with Push to Test (Fuse Style)
TI24000-007C2
Front Panel Complete with Push to Test (Fuse Style)
Front Panel Complete with Push to Test (Fuse Style)
TI24000-169
Front Panel Sticker (Commercial & Military) - NEMA
Front Panel Sticker (Commercial & Military) - NEMA
TI24000-008
Front Panel Sticker (Fuse Style)
Front Panel Sticker (Fuse Style)

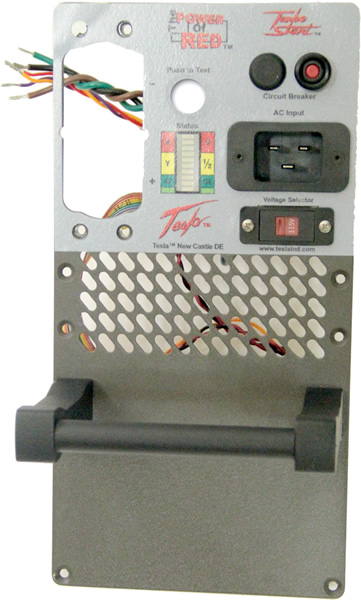

TI2000-128
Front Panel without Push to Test- NEMA
Front Panel without Push to Test- NEMA
TI2005-018
Front Rest
Front Rest

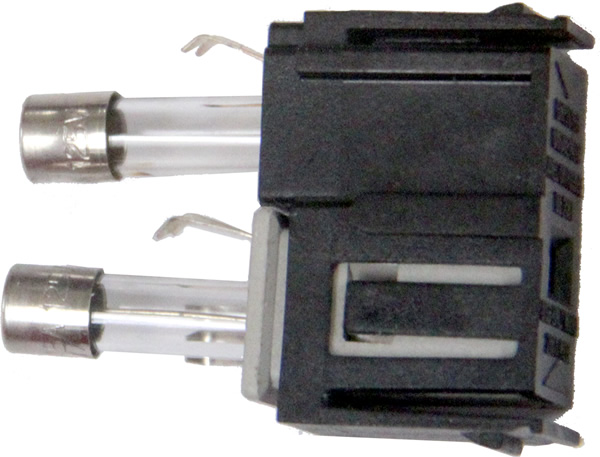

TI2000-050
Fuse Holder with (2) Fuses
Fuse Holder with (2) Fuses
TI22000-030
Fuses 15 Amp
Fuses 15 Amp

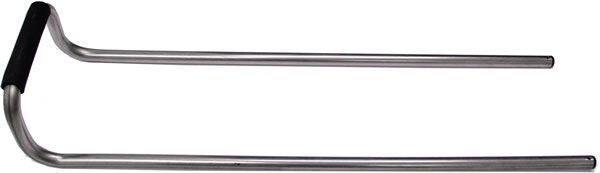

TI2005-023
Handle - Telescopic
Handle - Telescopic
TI2005-016
Handle Only
Handle Only
TI2005-373
Heatsink
Heatsink
TI24000-126
Knob
Knob

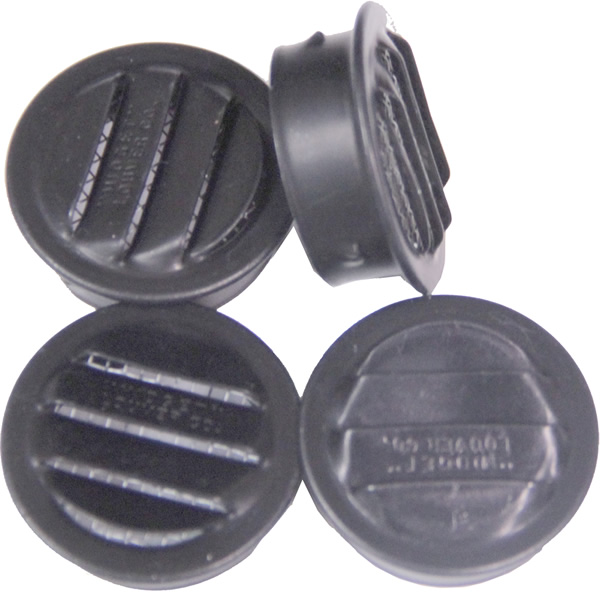

TI21000-078
Miget Louver Vents (sold in sets of 4)
Miget Louver Vents (sold in sets of 4)
TI2005-035
Plate for Inside Support for Front Rest
Plate for Inside Support for Front Rest
TI2005-040
Plate for Outside Support for Front Rest
Plate for Outside Support for Front Rest
TI2000-023
Push to Test Board
Push to Test Board
TI2000-042
Push to Test Button
Push to Test Button
TI2005-013
Rear Panel - Plate Only
Rear Panel - Plate Only
TI2000-138
Rear Panel with Fan (excludes Rear Rest)
Rear Panel with Fan (excludes Rear Rest)
TI2005-384
Rear Rest-Reinforced (excludes Rubber Cover)
Rear Rest-Reinforced (excludes Rubber Cover)

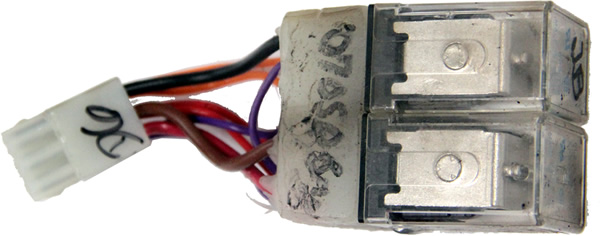

TI2010-045
Relay for Fuse Style Units
Relay for Fuse Style Units

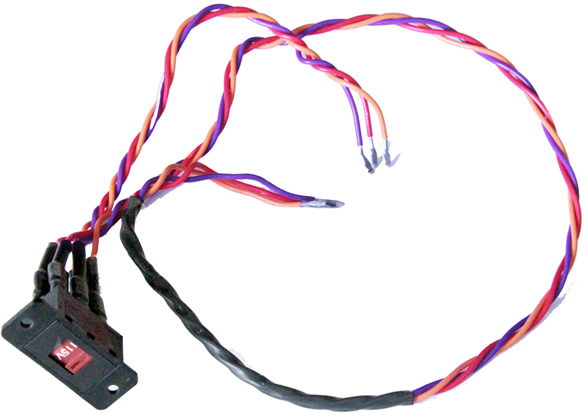

TI2010-081
Slide Switch Assembly with wires
Slide Switch Assembly with wires
TI2005-367
Slide Switch Clear Cover
Slide Switch Clear Cover
TI21000-203
Tire (Flat-Free)
Tire (Flat-Free)
Included
TI3000 GPU-24 / NSN: 6130014402712 (CL IX)
- TI2007-208 8' DC Aviation Cable Assembly OR
- TI2007-315 15' DC NATO Cable Assembly
TIMV3000 GPU-24 / NSN: 6130014755321 (CL II)
- TI2007-315 15' DC NATO Cable Assembly
TI3000 GPU-24 / Commercial
- TI2007-208 8' DC Aviation Cable Assembly
- TI25000-032 8' 2" NEMA 520P North American Line Cord
